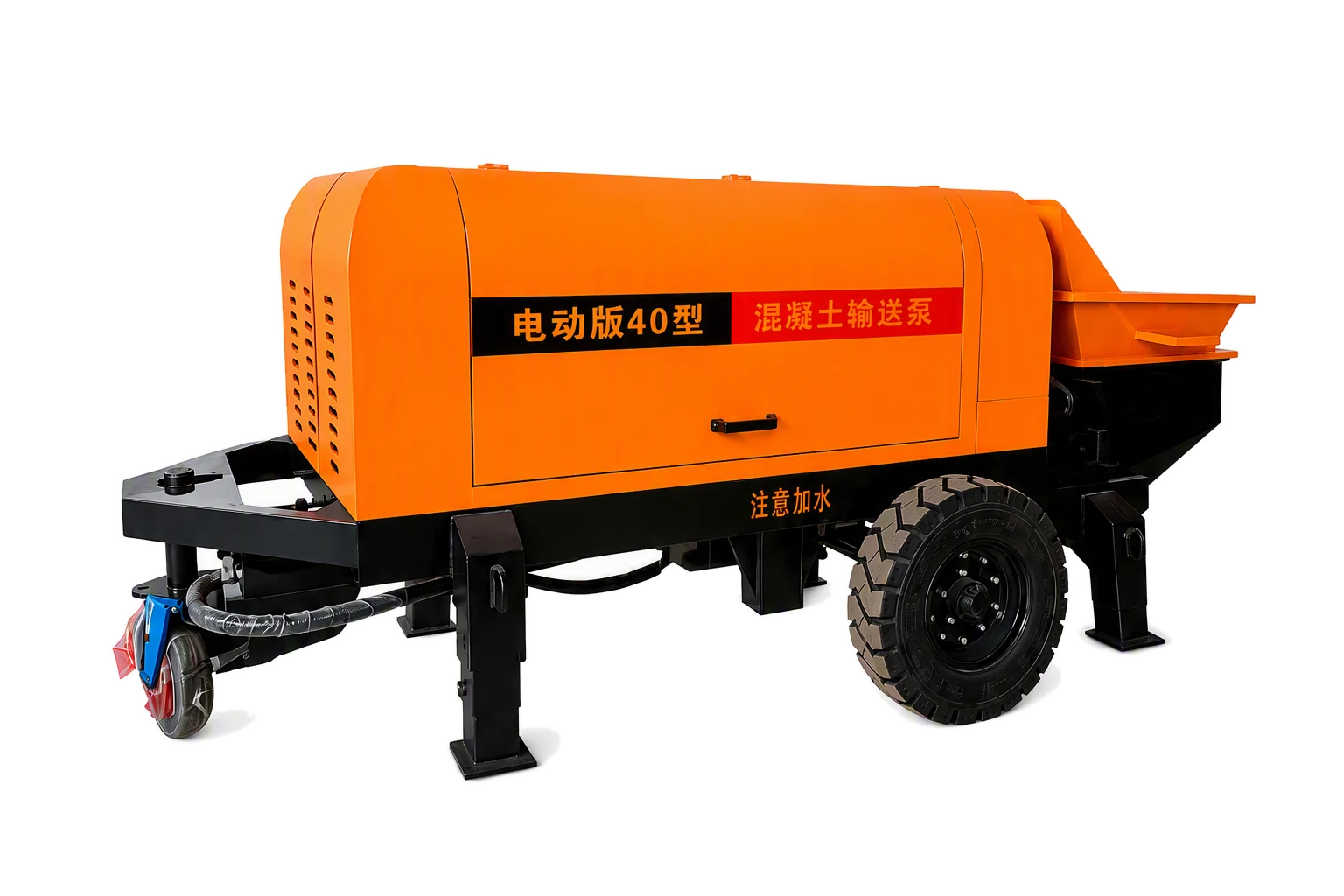

Electric Low Pressure 40 Concrete Pump
Electric Low Pressure 40 Concrete Pump Manufacturer China | Pinjin Machinery. Electric Low Pressure 40 Concrete Pump. Electric Low Pressure 40 Concrete Pump is a electric low-pressure trailer concrete pump manufactured by Hebei Pinjin Machinery in Xingtai, Hebei, China. Catalogue parameters: 37 kW motor, 12–15 m³/h, 20 MPa, fine-stone 80 m / 240 m. Match mix, aggregate size, pumping distance and site power to this catalogue table. It is not a truck-mounted placing boom and not a concrete batching plant. This page is only the Electric Low Pressure 40 Concrete Pump catalogue row (37 kW · 12–15 m³/h · 20 MPa · 80 m / 240 m). Open a neighbour model page if that row fits the site better. Electric 30 Concrete Pump: Electric 30 Concrete Pump lists 30 kW; Electric Low Pressure 40 Concrete Pump lists 37 kW. Electric 30 Concrete Pump lists 60 m / 180 m; Electric Low Pressure 40 Concrete Pump lists 80 m / 240 m. Use this page’s table, not a row copied from the other model. Electric 40 Concrete Pump: Electric 40 Concrete Pump lists 45 kW; Electric Low Pressure 40 Concrete Pump lists 37 kW. Electric 40 Concrete Pump lists 21 m³/h; Electric Low Pressure 40 Concrete Pump lists 12–15 m³/h. Electric 40 Concrete Pump lists 23 MPa; Electric Low Pressure 40 Concrete Pump lists 20 MPa. Electric 40 Concrete Pump lists 120 m / 360 m; Electric Low Pressure 40 Concrete Pump lists 80 m / 240 m. Use this page’s table, not a row copied from the other model. Not a truck-mounted placing boom and not a concrete batching plant. Not a dedicated mortar sprayer, grout pump or shotcrete robot. Not for sites that cannot supply the listed motor power from a stable grid. Not a neighbour model’s catalogue row. This page is only Electric Low Pressure 40 Concrete Pump (37 kW · 12–15 m³/h · 20 MPa · 80 m / 240 m). Choose Electric Low Pressure 40 Concrete Pump when the site matches this page’s row (37 kW · 12–15 m³/h · 20 MPa · 80 m / 240 m). If a neighbour model’s power, output or distance fits better, open that product page instead of copying its numbers here. Then send mix, aggregate, distance, power, country and timing for a factory quote. Material / mix Maximum aggregate size Required output Horizontal pumping distance Vertical pumping distance Power condition (diesel or voltage / frequency) Country Buyer role and timing Part name Outer diameter or kit Diameter (DN) Quantity What is Electric Low Pressure 40 Concrete Pump? An electric low-pressure trailer concrete pump listed in the Hebei Pinjin Machinery catalogue and manufactured in Xingtai, China. Who needs Electric Low Pressure 40 Concrete Pump? Contractors matching published output, pressure and conveying distance to the site. What are the key specifications of Electric Low Pressure 40 Concrete Pump? According to the product catalogue: Model: Electric Low Pressure 40; Motor Power: 37 kW; Output Capacity: 12–15 m³/h; Max. Outlet Pressure: 20 MPa. See the full specifications table on this page. Who manufactures Electric Low Pressure 40 Concrete Pump and where? Electric Low Pressure 40 Concrete Pump is manufactured by Hebei Pinjin Machinery Manufacturing Co., Ltd., located at Renze Industrial Park, Xingtai City, Hebei Province, China. What is the price of Electric Low Pressure 40 Concrete Pump and how do I get a quote? There is no published list price for Electric Low Pressure 40 Concrete Pump. International freight is extra and paid by the buyer. Confirm the quotation by email through the Get Quote buttons. Include the model, quantity and destination. What mix or aggregate can Electric Low Pressure 40 Concrete Pump pump? This model page does not list a maximum aggregate size. Send the mix and aggregate so the factory can confirm against a listed configuration. Unpublished performance is not promised. What conveying distance is listed for Electric Low Pressure 40 Concrete Pump? The catalogue lists 80 m / 240 m. Use that row, not a distance copied from another model. What power does Electric Low Pressure 40 Concrete Pump use? The catalogue lists 37 kW; theoretical output 12–15 m³/h. Confirm site voltage/frequency or diesel supply before ordering. Engine brand beyond the printed row is not invented here. How does Electric Low Pressure 40 Concrete Pump differ from nearby catalogue models? Electric 30 Concrete Pump: Electric 30 Concrete Pump lists 30 kW; Electric Low Pressure 40 Concrete Pump lists 37 kW. Electric 30 Concrete Pump lists 60 m / 180 m; Electric Low Pressure 40 Concrete Pump lists 80 m / 240 m. Use this page’s table, not a row copied from the other model. Electric 40 Concrete Pump: Electric 40 Concrete Pump lists 45 kW; Electric Low Pressure 40 Concrete Pump lists 37 kW. Electric 40 Concrete Pump lists 21 m³/h; Electric Low Pressure 40 Concrete Pump lists 12–15 m³/h. Electric 40 Concrete Pump lists 23 MPa; Electric Low Pressure 40 Concrete Pump lists 20 MPa. Electric 40 Concrete Pump lists 120 m / 360 m; Electric Low Pressure 40 Concrete Pump lists 80 m / 240 m. Use this page’s table, not a row copied from the other model. What is Electric Low Pressure 40 Concrete Pump not suitable for? Not a truck-mounted placing boom and not a concrete batching plant.; Not a dedicated mortar sprayer, grout pump or shotcrete robot.; Not for sites that cannot supply the listed motor power from a stable grid.; Not a neighbour model’s catalogue row. This page is only Electric Low Pressure 40 Concrete Pump (37 kW · 12–15 m³/h · 20 MPa · 80 m / 240 m). How do I inquire about Electric Low Pressure 40 Concrete Pump? Choose Electric Low Pressure 40 Concrete Pump when the site matches this page’s row (37 kW · 12–15 m³/h · 20 MPa · 80 m / 240 m). If a neighbour model’s power, output or distance fits better, open that product page instead of copying its numbers here. Then send mix, aggregate, distance, power, country and timing for a factory quote. Confirm the quotation by email through the Get Quote buttons. Include the model, quantity and destination. Do you have overseas warehouses or a global dealer network? No overseas warehouse or exclusive country dealer list is published on this site. Quotes and shipment are arranged from the Xingtai factory. WhatsApp and email are the contact channels listed. Model Electric Low Pressure 40 Motor Power 37 kW Output Capacity 12–15 m³/h Max. Outlet Pressure 20 MPa Hopper Capacity 0.3 m³ Fine Stone Pumping (H / V) 80 m / 240 m Hydraulic Pump Kawasaki 112 Dimensions (L×W×H) 3300 × 1500 × 1500 mm Page /en/products/electric-low-pressure-40-concrete-pump/.
Specifications
- Model: Electric Low Pressure 40
- Motor Power: 37 kW
- Output Capacity: 12–15 m³/h
- Max. Outlet Pressure: 20 MPa
- Hopper Capacity: 0.3 m³
- Fine Stone Pumping (H / V): 80 m / 240 m
- Hydraulic Pump: Kawasaki 112
- Dimensions (L×W×H): 3300 × 1500 × 1500 mm
